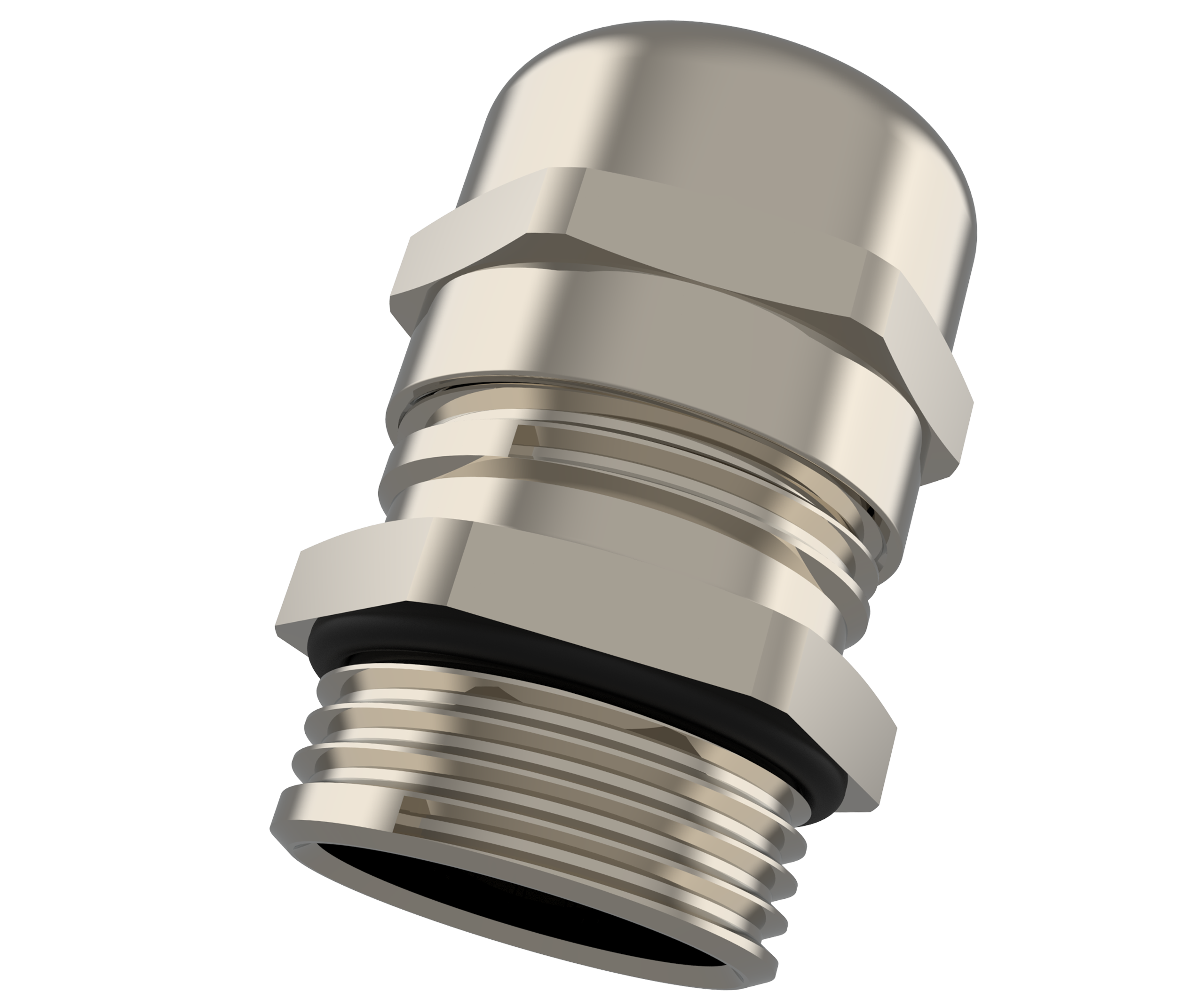

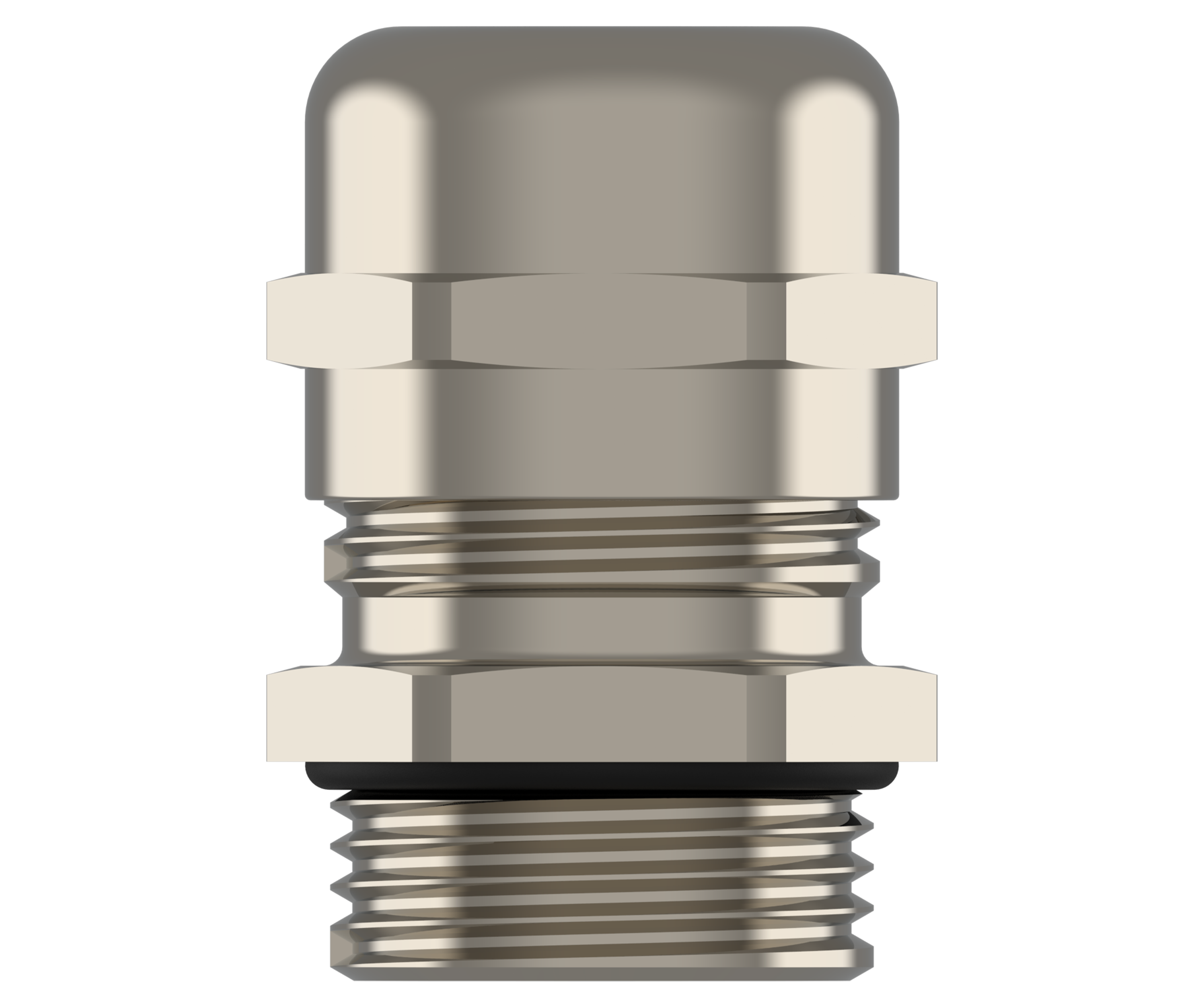

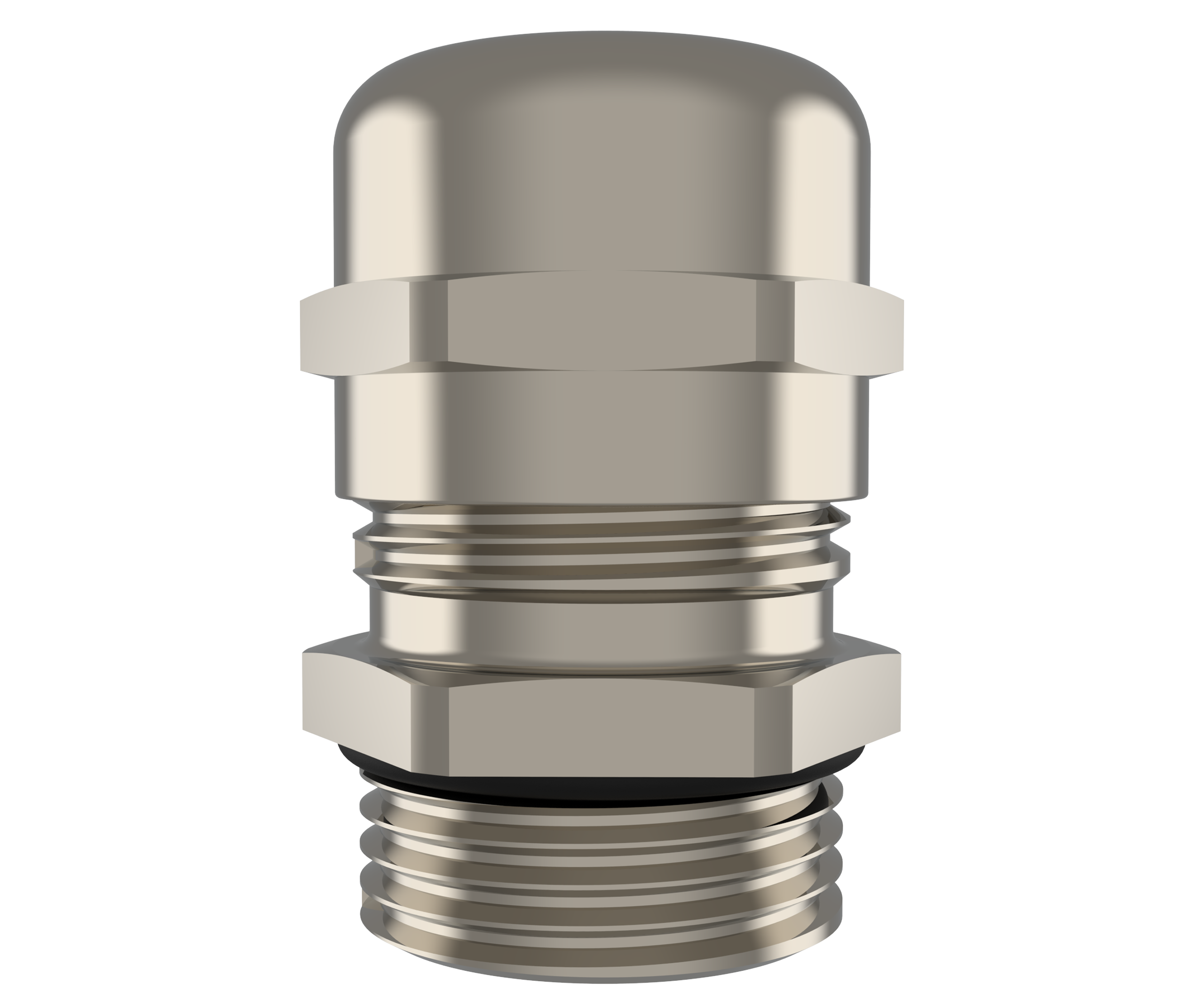

Standard Cable Glands, Brass

Suitable for both indoor and outdoor use in industrial environments

Designed for use with non-armoured cables, conforming to EN 62444 and UL514B standards

High protection against dust, moisture, and water ingress

High tensile strength and reliable strain relief

Durable design with quick and easy assembly

Wide cable clamping ranges for versatile applications

Compatible with various sealing inserts (multihole, double seal, flat cable)

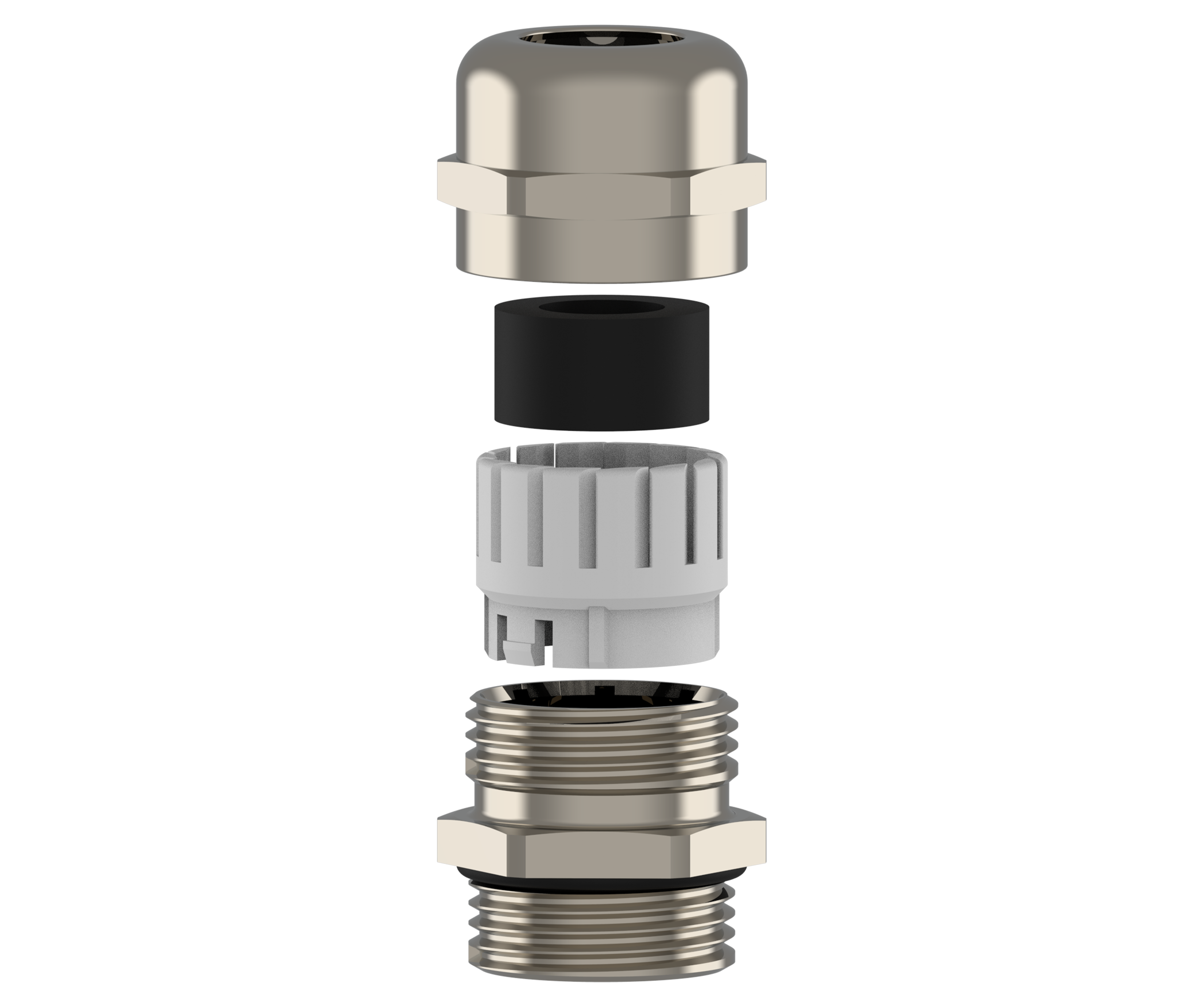

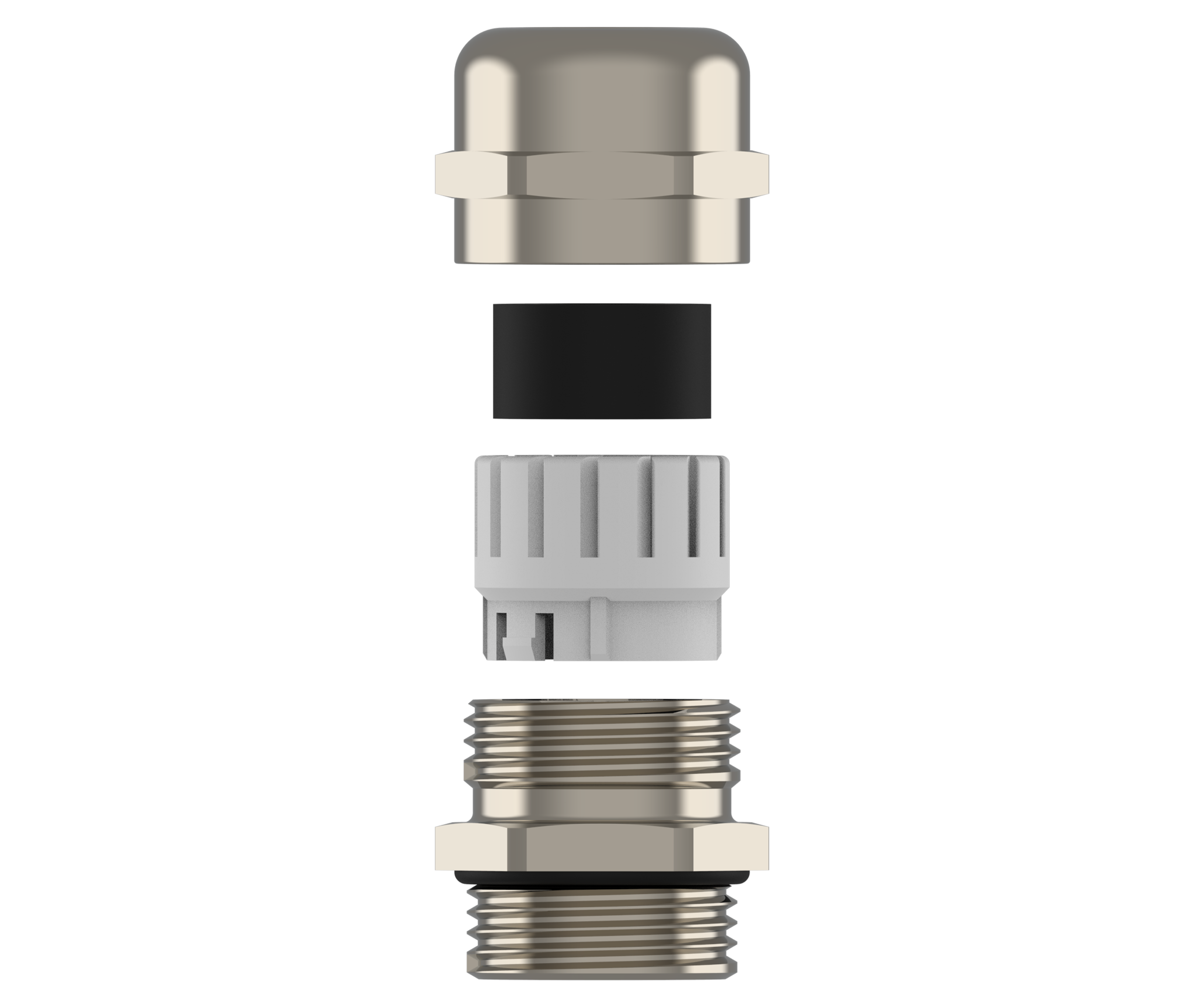

Cap/Body Material	Nickel Plated Brass
Seal Material	Neoprene (Chloroprene)
Clamping Insert Material	Polyamide 6 V2 acc. to UL 94
O-Ring Material	NBR
Ingress Protection Rating	IP68 - 5 Bar 30 min, IP69, IP66
NEMA Type Rating	1, 4, 4X, 12, 13
Temperature Range	Permanent -20 °C to +100 °C Intermittent -40 °C to +150 °C
Thread Type	Metric, PG, NPT
Cable Type	Non-Armoured
Accessories	Lock nuts Dome plugs Reducing seals Flat cable seals Multihole seals Gaskets (Washers)
Remarks	In compliance with DIN EN 62444. Some approvals do not cover all sizes. O-ring available in Metric and PG outer threads. All accessories must be ordered separately. Cable glands with NPT threads up to 1" are supplied with an O-ring. O-rings are not included for 1¼" and larger sizes.
