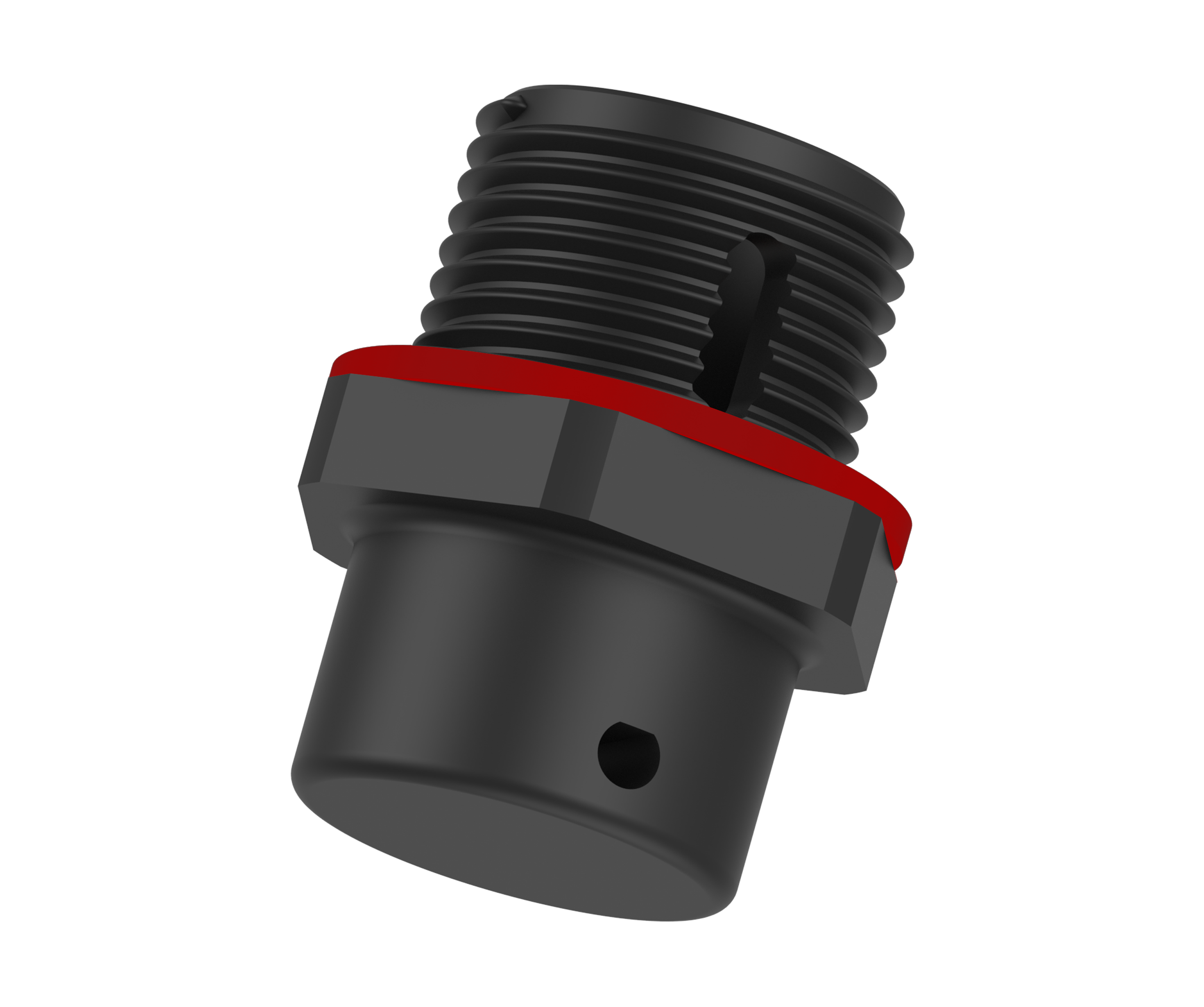

Spica

For applications in explosive environments.

Suitable for use in Group II and III Hazardous areas.

Drains condensed water in the housing.

Helps to avoid any potential damage to sensitive electric/electronic equipment in the housing due to condensed water.

Allows air in the housing to breathe with the surrounding atmosphere.

Compliant with Ex eb and Ex tb safety standards.

Certified to ATEX and IECEx standards with additional global approvals available (see technical for full list).

Cap/Body Material	Polyamide 66

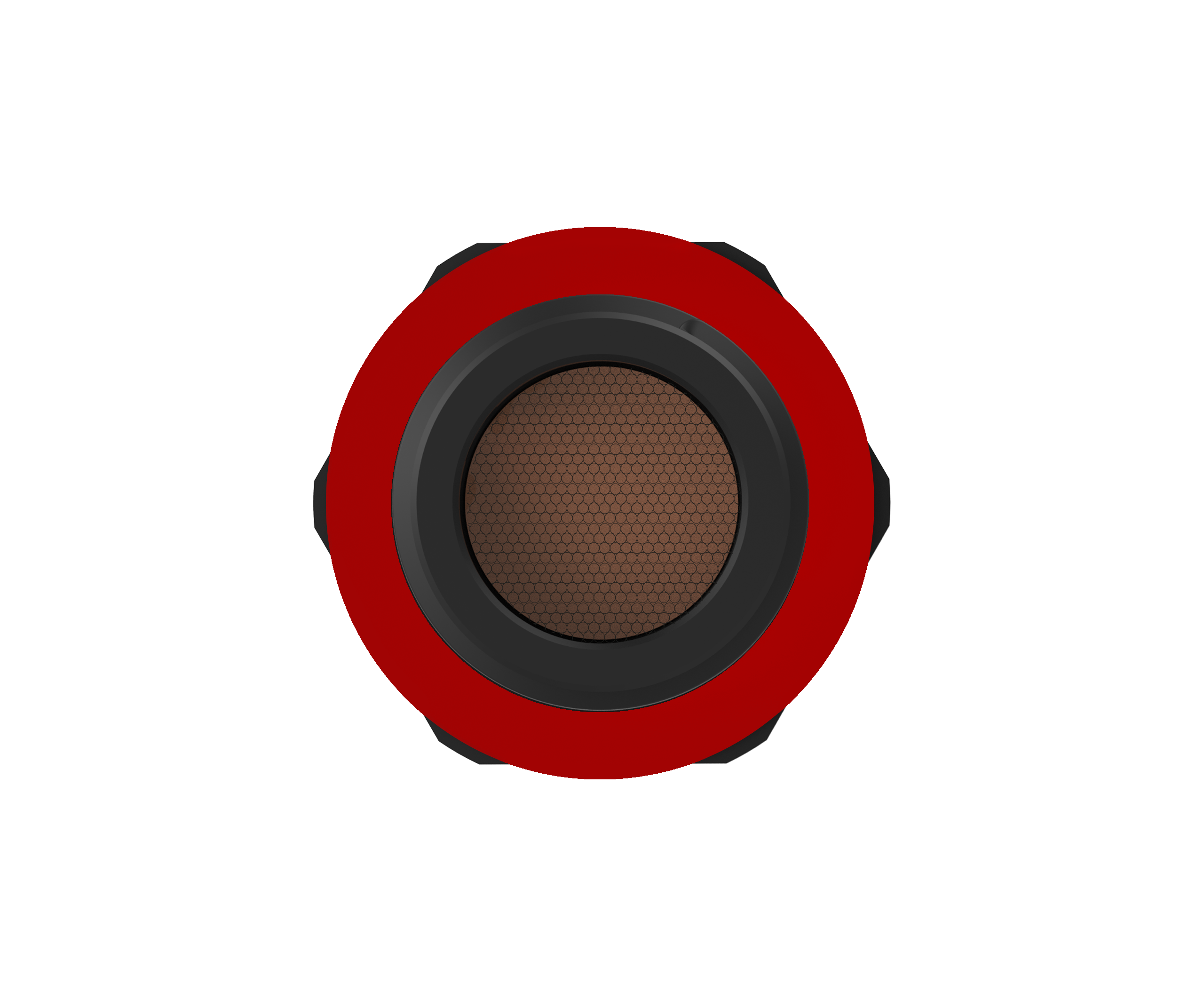

Filter Material	Bronze
Seal Material	Silicone
Equipment For	Gas & Dust potentially explosive atmospheres
Equipment Group	Group II Gas Group IIC ZONE1/ ZONE2 Group III Dust Group IIIC ZONE21/ZONE22
Equipment Marking	EX II 2GD Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66 (for installation downward), IP64 (for installation lateral)*
Temperature Range	-60°C to +85°C

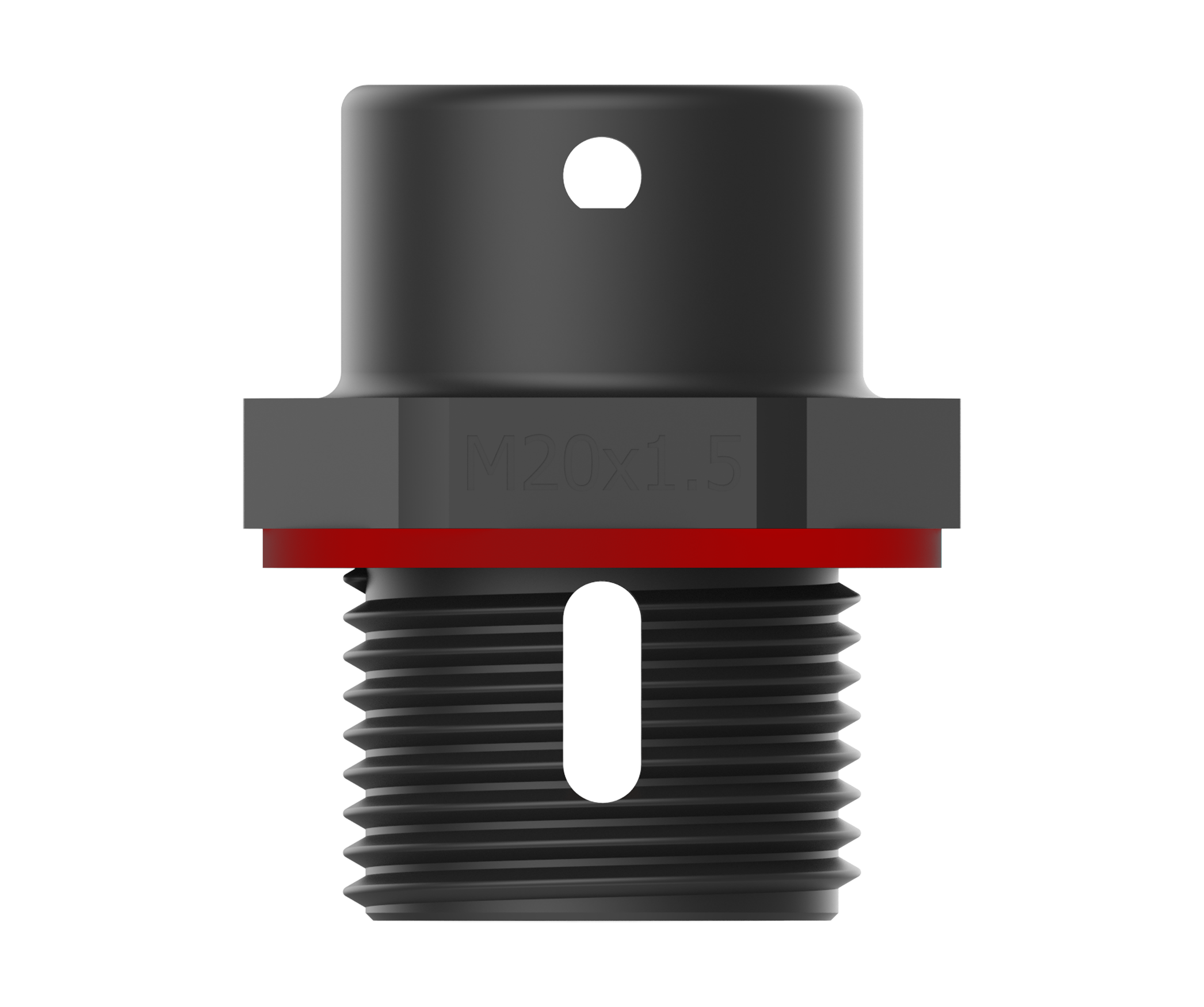

Thread Type	Metric
Accessories	Drain Lock-Nuts

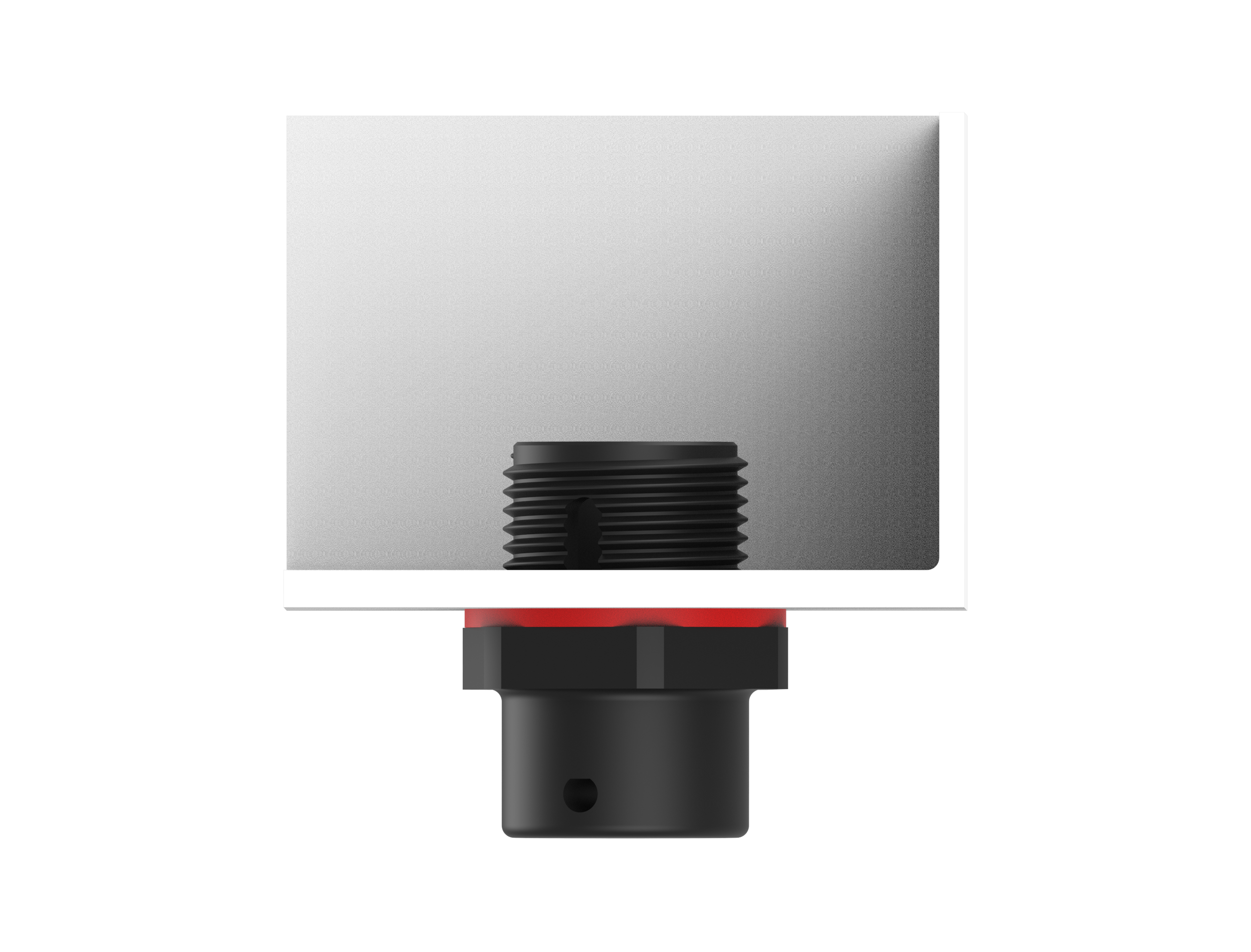

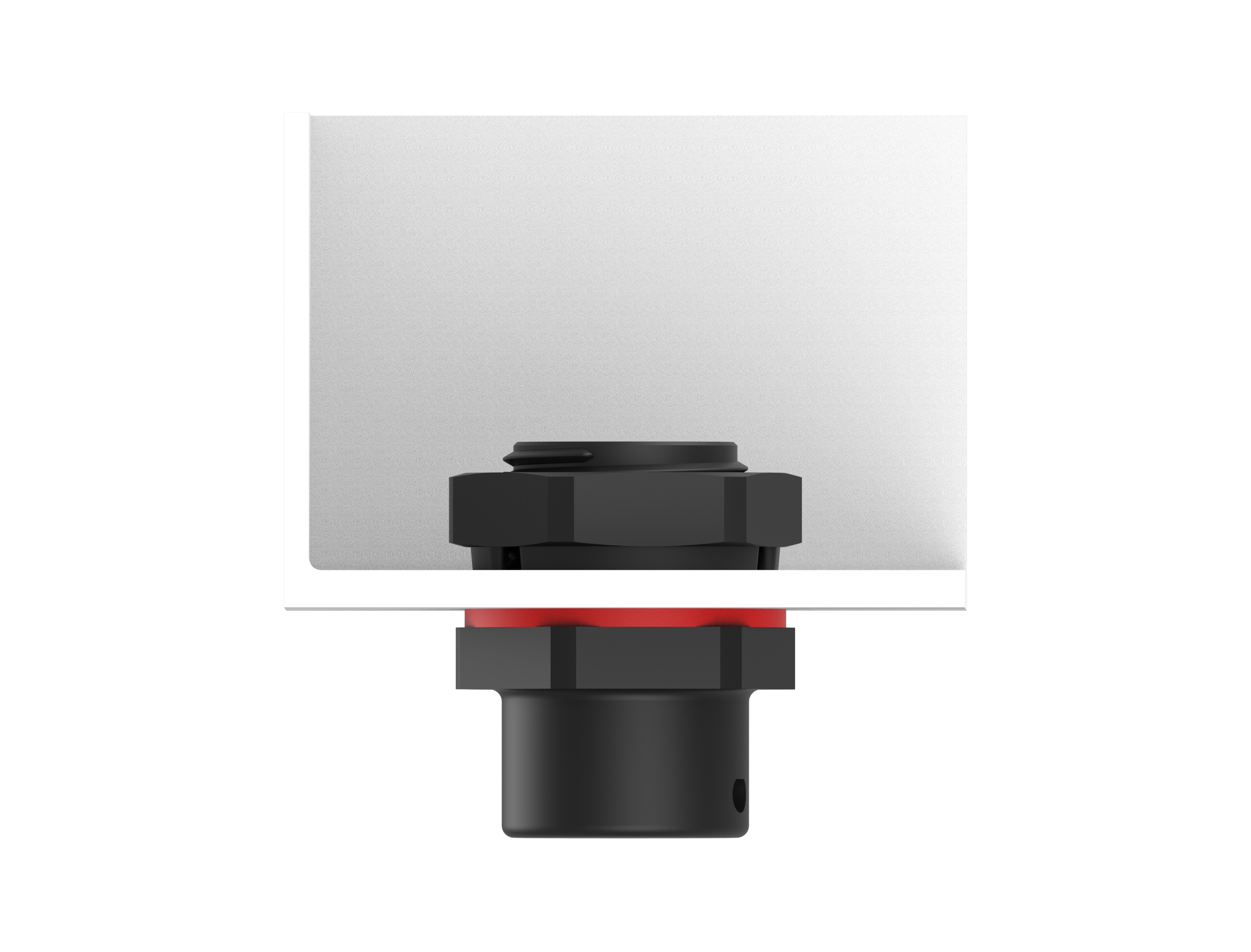

Remarks	*Drain plugs are designed for downward installation to allow water drainage. When installed laterally, they function as breathers only and provide IP64 protection.
	All accessories must be ordered separately.
	Standard marking includes ATEX, IECEx and Group II,III info.
	For other special certificate marking requests, please contact us.
	For Water Flow and Air Flow Rate please contact us.
