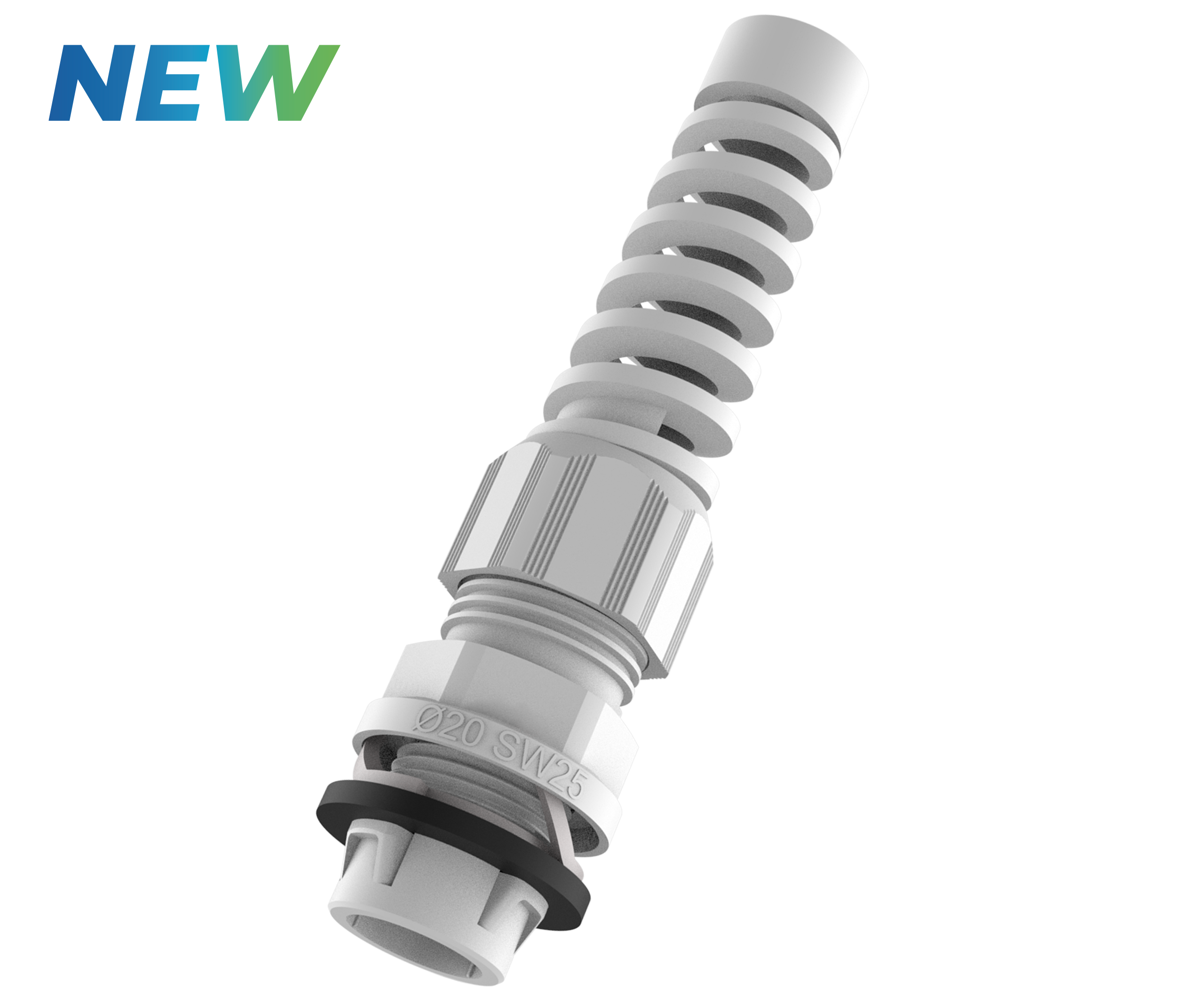

Snap-In Protection Cable Glands, Plastic

Designed for installation in tight spaces or areas with limited access to the rear (locknut side).

Achieve up to 70% time savings compared to conventional cable glands during assembly.

Designed with anti-kink features to minimize the risk of sharp bending of flexible cables, helping to prevent conductor fatigue and damage

Suitable for dynamic applications where cables are subjected to frequent movement or flexing

Suitable for both indoor and outdoor use in industrial environments

High protection against dust, moisture, and water ingress

High tensile strength and reliable strain relief

Wide cable clamping ranges for versatile applications

Designed for use with non-armoured cables, conforming to EN 62444 and UL514B standards

Manufactured from halogen-free polyamide material

Cap/Body Material  Polyamide 6 V2 acc. to UL 94
Seal Material Neoprene (Chloroprene)
Ingress Protection Rating IP68 - 5 Bar 30 min, IP66
Type Rating 4X
Temperature Range Permanent -20 °C to +100 °C
Intermittent -40 °C to +150 °C
Colour Silver grey (RAL 7001)
Light grey (RAL 7035)
Black (RAL 9005)
Thread Type Non-Threaded
Cable Type Non-Armoured
Accessories ▪ Disassembly tool
▪ Reducing seal
▪ Double seal
▪ Flat cable seal
▪ Multihole seal
Remarks  ▪ Accessories must be ordered separately.
▪ Other sealing materials available on request: NBR, Silicone
▪ Disassembly tools (one included per Minimum Order Quantity)
▪ Some approvals may not apply to all sizes
