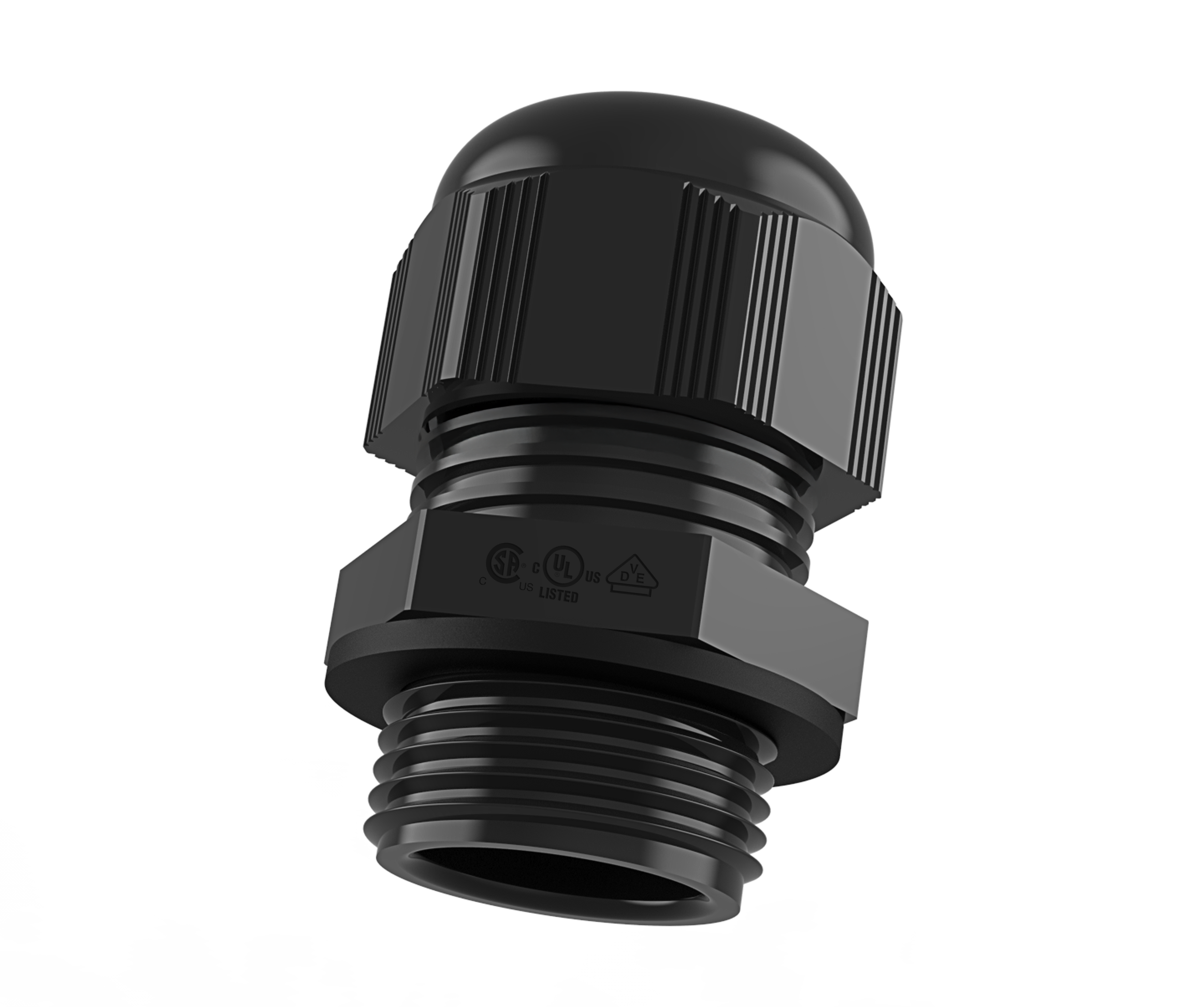

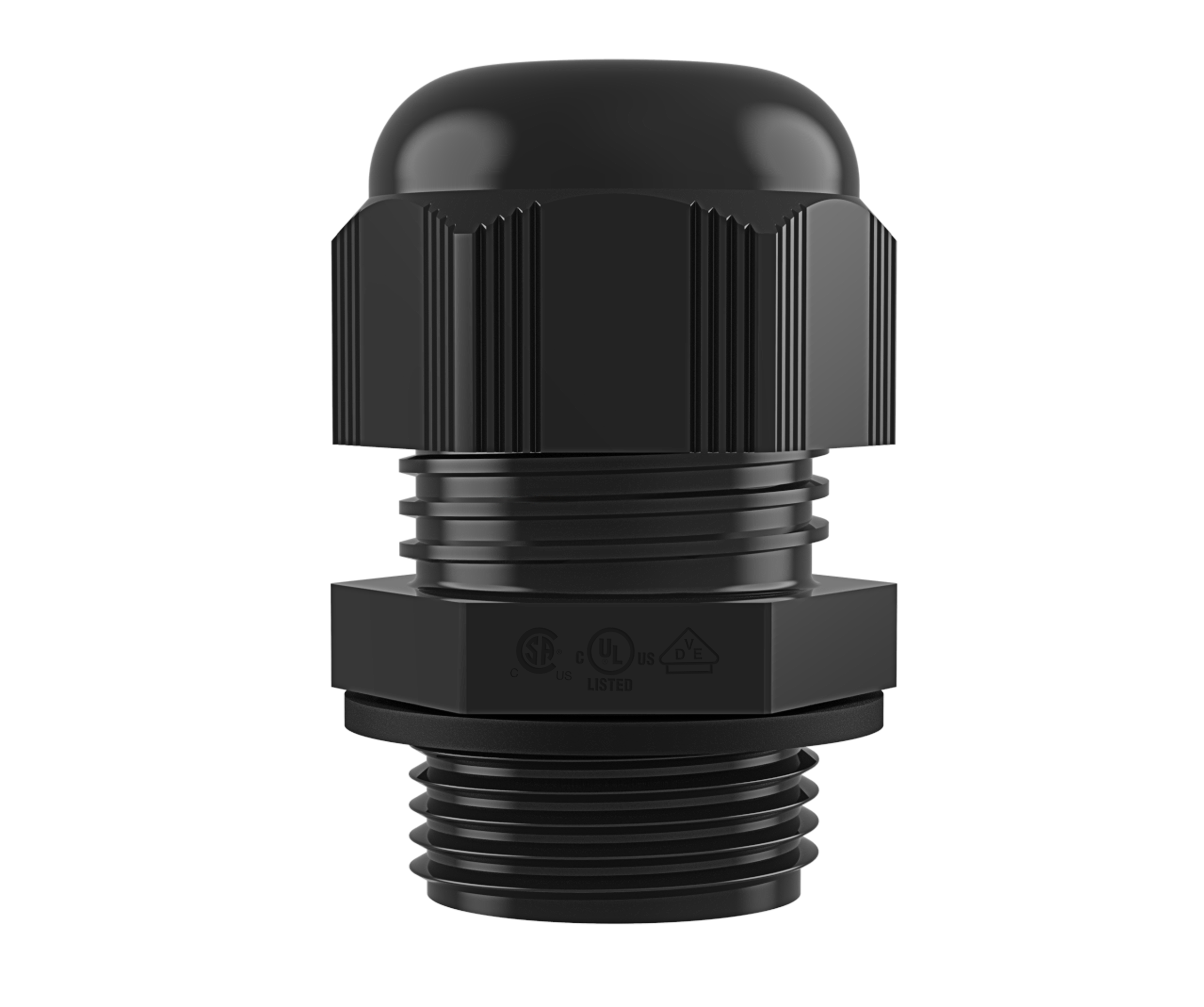

Gemini

For applications in explosive environments.

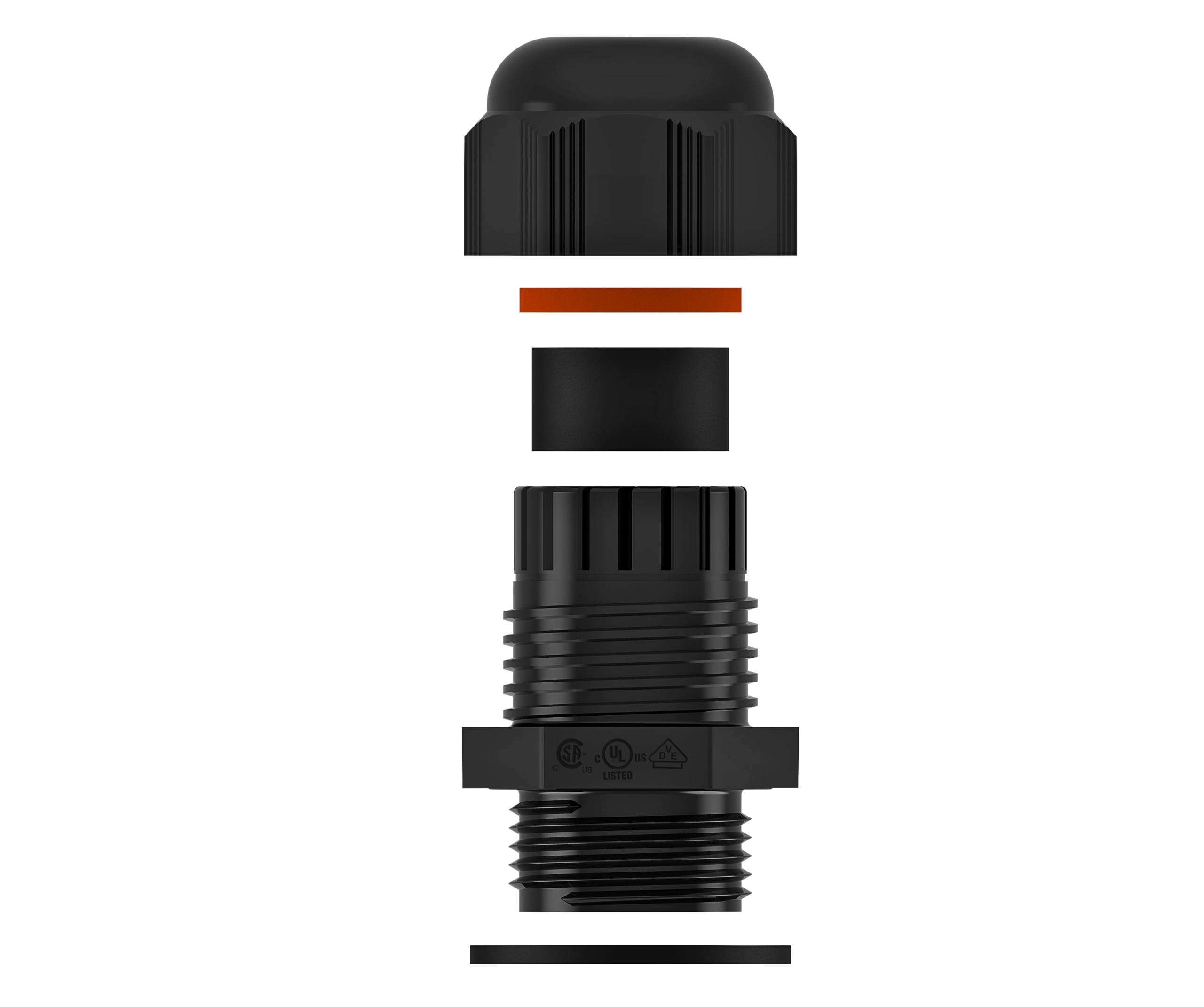

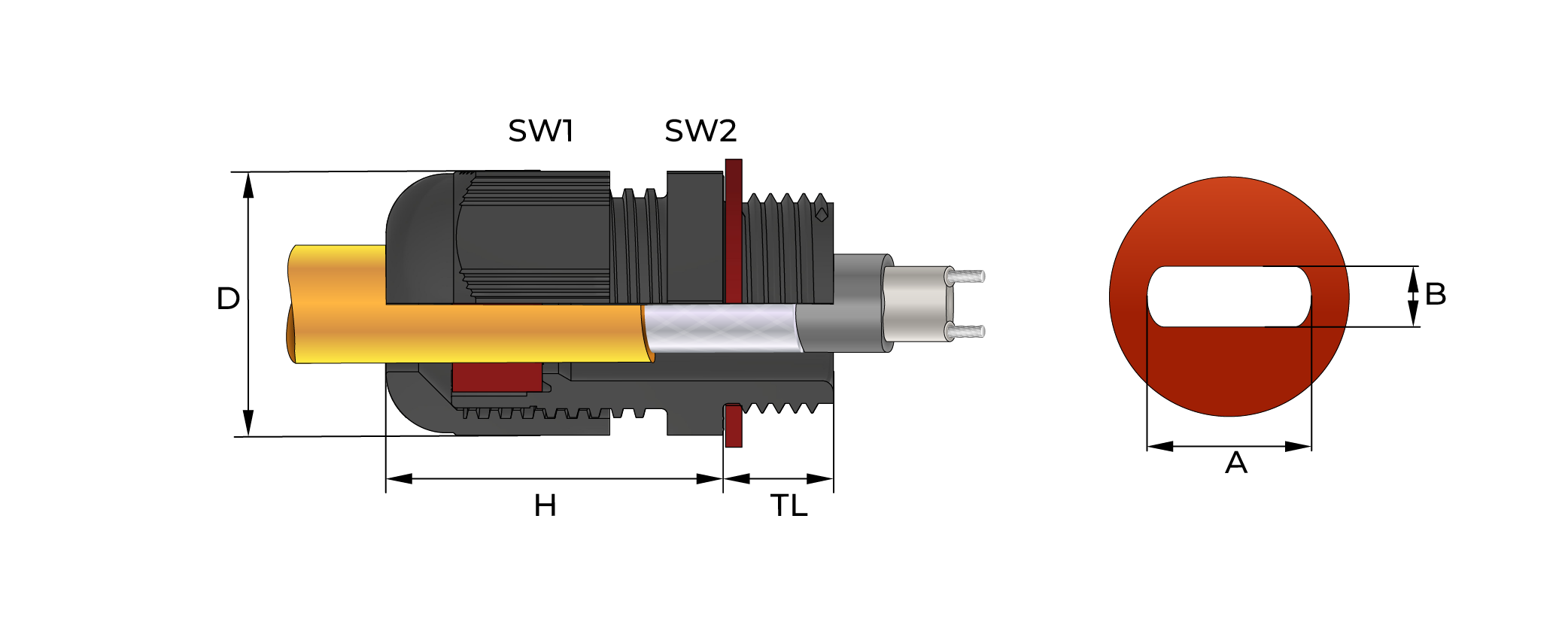

Special design for heat trace and flat cables.

Compliant with Ex eb and Ex tb safety standards.

Can be used for 4J low impact applications.

Can be used with intrisically safe circuits.

Easy assembly.

Certified to ATEX and IECEx standards with additional global approvals available (see technical for full list).

Cap/Body Material	PA 6 (Polyamide 6)
Seal Material	Silicone
Application	Zone 1, Zone 21, Zone 2, Zone 22
Equipment Group	Group II, Group III
Equipment Marking	EX II 2GD Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating	IP66, IP68 - 5 Bar, 30 min
Temperature Range	M20 size : -40°C to +80°C
	M25 size : -60°C to +80°C
Thread Type	Metric, NPT
	Other thread types available upon request.
Cable Type	Non Armoured
Accessories	Lock nuts, Gaskets (Washers)
Remarks	Sealing washer available in Metric outer threads.
	All accessories must be ordered separately.
	Standard marking includes ATEX, IECEx and Group II,III info.
	For other special certificate marking requests, please contact us.
	Some approvals do not cover all sizes, check datasheets for details.
	Other thread types available upon request.
